Die Retainer Size
Grade 2" x 6" 2" x 9" 2" x 12"
UT-35 16 ga. 14 ga. 14 ga.
UT-25 10 ga. .187 .250
UT-15 .250 .250 .250
Gauge determined for 4" radius with solid die pad system.

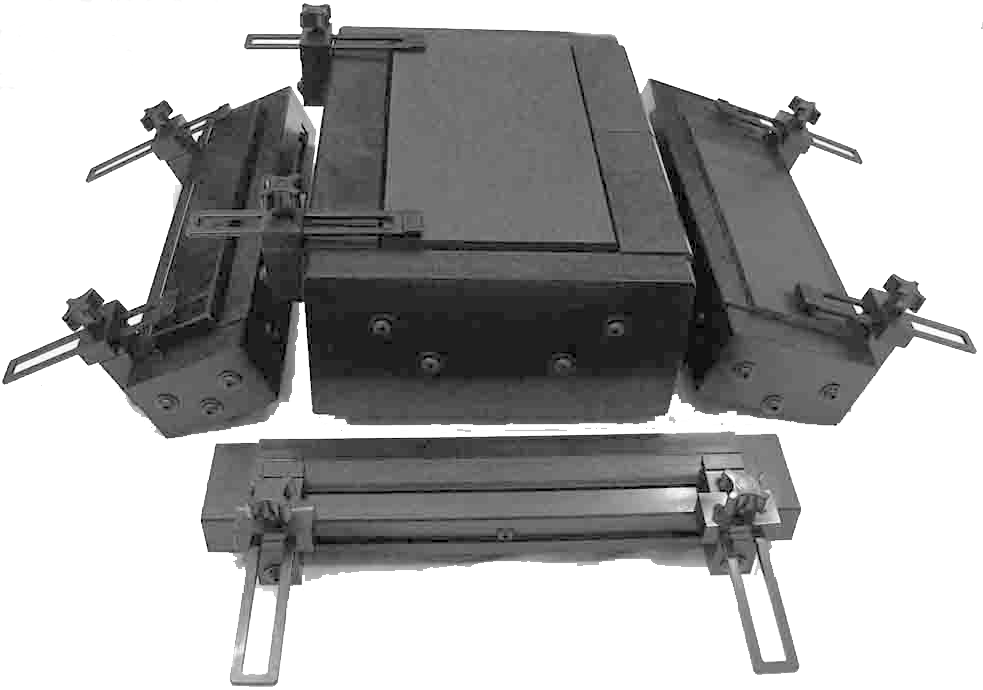

Purpose of Press Brake Die Retainers
The Die Retainer encloses the die pad to hold the high forces of the forming punch during the forming stroke. The Die Retainer is made of a high quality steel with removable end caps.
Die Retainer Holder Selection
Size
A x B C D Catalog No.
2" x 6" 4-1/2" 10" UT-6020-00
2" x 9" 4-3/4" 13-1/8" UT-9020-00
2" x 12" 5" 16" UT-12020-00
Available for purchase in one foot sections
Advantages of Die Retainers
Permits Accurate Bending
No marring or scratching of polished or prefinished surfaces
Allows forming of various shapes and gauges of material with one female bottom die
Buy one foot now and add additional lengths at a later date
Ease of installation and removal from press brake
TOOL-A-THANE Press Brake Die Retainer
Catalog No. Size Description 6020-00-12EC 6" x 2" 12" Section with End Caps 6020-00-12NC 6" x 2" 12" Section with No End Caps 6020-00-00ED 6" x 2" Single Length with End Caps 9020-00-12EC 9" x 2" 12" Section with End Caps 9020-00-12NC 9" x 2" 12" Section with No End Caps 9020-00-00EC 9" x 2" Single Length with End Caps 12020-00-12EC 12" x 2" 12" Section with End Caps 12020-00-12NC 12" x 2" 12" Section with No End Caps 12020-00-00EC 12" x 2" Single Length with End Caps
For prices Click here: TOOL-A-THANE Urethane Press Brake Die Retainer
