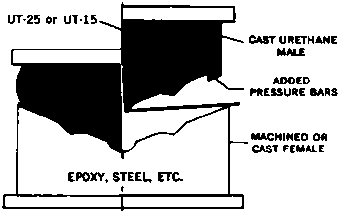

TOOL-A-THANE used as male punch. No critical line up is necessary between male and female sections. Machined or epoxy cast female is used as the mold for the casting of urethane punch. Design allows bottoming with pressure while material thickness variation is automatically allowed for. Die can be used for either low or high production runs. Die design allows for substantial reduction in tool cost as compared to conventional methods.
